Riyadh
Northlane Solutions supplies and installs hospital helipads, obstruction lighting for towers and cranes, and airfield lighting for Riyadh projects. Designs follow ICAO Annex 14, GACAR Part 138 and FAA AC 150/5390-2C, with dust-sealed fixtures for the capital's sand and 45 C summers. Delivery is quoted from the supplier's point of shipment.
Where Riyadh needs aviation infrastructure
Three kinds of Riyadh project call for aviation infrastructure: tertiary hospitals that need an emergency helipad on a roof or podium, tall structures that need obstruction lighting, and airport-related works. King Khalid International Airport, run by Riyadh Airports Company, sits in the north of the city, and the planned King Salman International Airport on the same site will extend its footprint. Cranes and towers inside the approach and transitional surfaces are checked against the obstacle limitation surfaces before they go up.

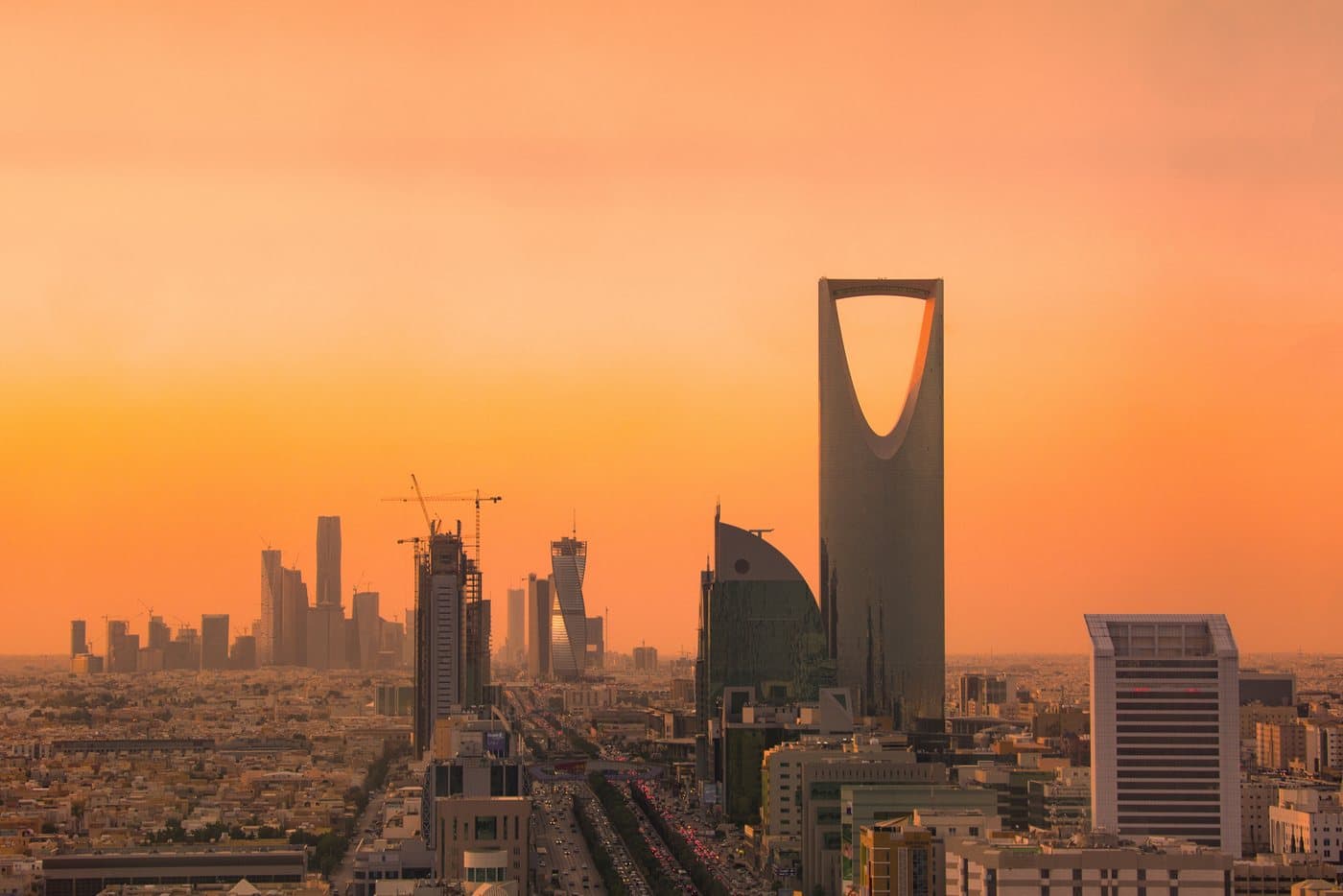

Towers in King Abdullah Financial District and around the Kingdom Centre set the pattern for skyline lighting. ICAO Annex 14 Volume I points to high-intensity lights on structures that rise more than 150 m above ground, and to medium-intensity lights on lower tall structures.
Dust and heat, not salt
Riyadh is inland, so the specification problems are dust and heat. Spring dust storms and summer ambient above 45 C push the choice toward sealed optics at IP66 or better, LED drivers with thermal margin and gaskets that survive UV. Helipad perimeter lights and wind-cone lighting get the same treatment, and lens cleaning is scheduled into the maintenance plan.
Approvals and delivery
A hospital helipad needs its design checked against GACAR Part 138 and its establishment approved by GACA before operations. A rooftop pad is also checked structurally for the design helicopter's load and for fire protection to NFPA 418. These approvals run beside Civil Defense review and the hospital's own works programme, so the lighting order is usually placed once the structure is fixed.
Delivery is quoted from the supplier's point of shipment. Fixtures are made abroad by aviation-lighting OEMs, shipped to Dammam or Jeddah and trucked to Riyadh, and the offer shows each leg.
Frequently Asked Questions
What approvals does a Riyadh hospital helipad need before it can operate?+
GACA establishment approval under GACAR Part 138, based on the design, an obstacle assessment and wind data, plus Civil Defense review of fire protection. Northlane Solutions prepares the marking and lighting design to ICAO Annex 14 Volume II and FAA AC 150/5390-2C so the approval file has what GACA asks for.
Which obstruction light type suits a very tall Riyadh tower?+
ICAO Annex 14 Volume I points to high-intensity lights on structures higher than 150 m above ground, and medium-intensity lights on lower tall structures. The final scheme depends on the site and GACA's assessment. Send height, coordinates and nearby airports and we will price a scheme.
Does Riyadh dust affect helipad and obstruction lighting?+
Yes. Spring dust storms and 45 C summers call for IP66 sealed fixtures, thermal margin in LED drivers and regular lens cleaning. The quote states the ingress rating and operating temperature range for each fixture.
